m2000 RealTime System

Large Product Thumbnail

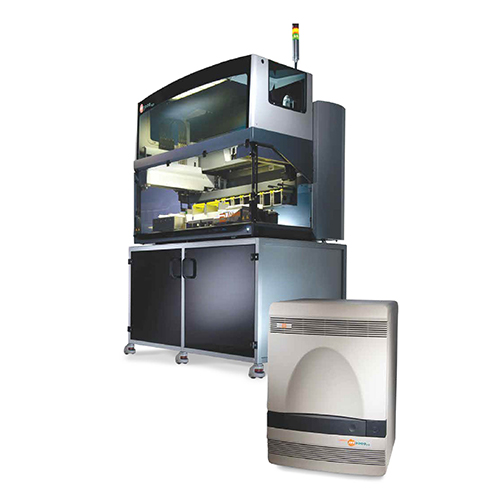

Abbott m2000 RealTime System

CE Marked

The Abbott m2000 RealTime System is a highly flexible and proven solution featuring a broad menu of IVD assays:

  • Allowing consolidation of PCR testing on a single, reliable, high performance platform
  • Availability of Laboratory Defined Applications (LDA)

The m2000 System gives today's labs the consistency and the confidence they need – all on a single platform.

View Ordering information

description


Real Advantages for Your Lab

The m2000 RealTime System incorporates a unique combination of leading science and enabling solutions.

Leading Science

  • RealTime assays provide proven accuracy, for reliable and accurate subtype and genotype detection
  • Proprietary maxRatio data analysis eliminates subjective result review for improved confidence in patient results
  • Advanced automation that extends from primary tubes to patient results helps optimize efficiency and walk-away time
  • Innovative IT enhancements, which centralize all molecular data into one location, keeps you at the forefront of automation

Enabling Solutions

  • A comprehensive family of mSystem products enable flexible throughput options and allows you to improve turnaround time
  • Superior consolidation capabilities, including IVD assays, Laboratory Defined Applications (LDAs) and open-mode extraction protocols helps you meet your lab's specific needs
  • Leading-edge technologies provide cost-effective control strategies and improve ease of use
  • Proven platform reliability gives you added confidence in patient results
design


With smart system design, the m2000sp fully automates the extraction of nucleic acid from the specimen and performance PCR plate preparation.

Positive ID Barcode Reader

  • Enables full sample and reagent tracking
  • Ensures positive identification of barcode on sample tubes, controls and reagent carriers
Flexible Sample Processing
  • Utilizes primary or secondary barcoded tubes (11.5 –16 mm)
  • Processes calibrators and controls like samples
  • Custom tube/rack configuration for optimal hands off time

Load-And-Go Capability

  • Performs all system-related tasks without manual interaction, using the Liquid Handler and Robotic Manipulator Arms
  • Reduces risk of cross-contamination

Output Deck

  • Maintains consistent PCR plate temperature, resulting in extended walkaway time

One Platform, Multiple Uses

  • Includes IVD assay extraction
  • Offers custom open-mode protocols for general purpose extraction

Custom Software

  • Utilizes intuitive and easy-to-use software
  • Provides French, Italian, German, Spanish and Portuguese language translation

Smart System Design

Abbott offers multiple sample preparation systems that will meet your needs as your lab's testing volume increases:


1. m2000sp (medium throughput)

Fully automated sample preparation system, including master mix creation and 96-well PCR tray generation

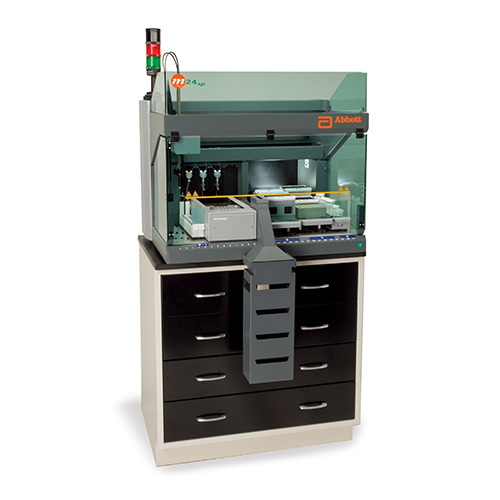

2. m24sp (low to mid throughput)

Automated sample preparation system completely automates sample purification steps








3. Abbott Manual Sample Preparation

Useful for laboratories with small volume requirements. Offers reliable extraction using mSample preparation chemistry and is interchangeable with other extraction systems in the mSystem family.







The m2000rt fully automates the amplification and detection of DNA, RNA, or TNA.

menu


m2000 SYSTEM TEST MENU
RealTime HIV-1 Qualitative
RealTime HIV-1 Quantitative
RealTime HBV
HBV Sequencing
RealTime HCV
RealTime HCV Genotyping II
RealTime High Risk HPV
RealTime CT/NG
RealTime CT
RealTime CMV
RealTime EBV
RealTime MTB
RealTime MTB RIF/INH Resistance
RealTime SARS-CoV-2

specifications

m2000sp SPECIFICATIONS
Total Width 145 cm (57.1 in)
Total Height 217.5 cm (85.6 in) instrument and cabinet
Total Depth 79.4 cm (31.3 in)
Weight 314.4 kg (693 lbs) instrument and cabinet
Power Source 100-240 V

m2000rt SPECIFICATIONS
 Total Width  34 cm (13.4 in)
 Total Height  49 cm (19.3 in)
 Total Depth  45 cm (17.8 in)
 Weight  34.1 kg (75.2 lbs)
 Power Source  100-240 V

more


The m2000 offers more capabilities to streamline your lab operations:

maxCycle

maxCycle is a reliable solution that allows for simultaneous processing of assays to help labs maximize sample throughput and reduce TAT for faster results reporting to physicians and patients. maxCycle allows the following assays to simultaneously be processed:

  • HIV and HCV;
  • EBV and CMV

mPlus

  • mPlus enables your lab to do more with less:
  • Extend the use of the amplification reagent
  • Customize your workflow to your sample arrival pattern
  • Reduce waste, costs and turnaround time
  • Perform new automatic inventory capabilities

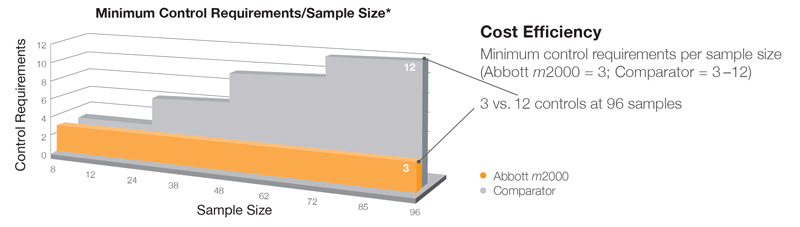

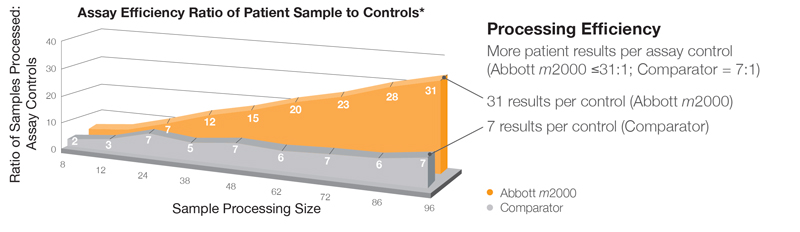

m2000sp-minimum-control-requirements-sample-size.jpgm2000sp-assay-efficiency-ratio.jpg

*Abbott data on file
