The ThermoBrite System is a programmable, open system that automates the denaturation and hybridization steps in slide-based FISH procedures and provides walk-away convenience for laboratory personnel.
Home > Offerings > All products > Instrumentation > ThermoBrite System

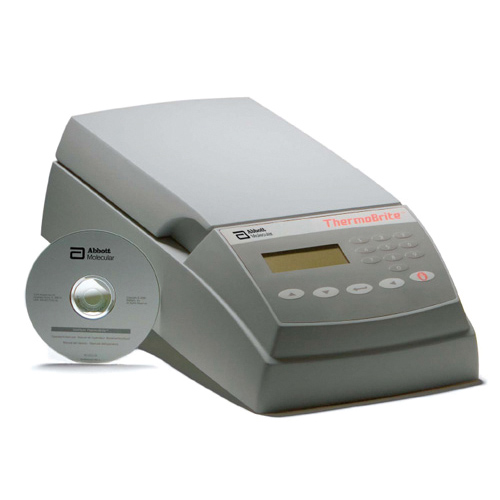

THERMOBRITE® SYSTEM
For Information Only - Not a Controlled Copy
User Programmable Settings
- 40 user defined protocols and 3 operating modes
- Easy to read backlit display
- Numeric keypad allows for easy programming
- Can be used as a fixed temperature slide warmer
Easy To Use
- Eliminates manual steps and reduces hands-on time during FISH procedures
- Slides do not need to be fully loaded to maintain temperature accuracy
- Slide separator keeps slides in place and allows for one hand removal
- Humidity Control Cards inside the lid maintain a humid environment
More Stringent Temperature Control
- Rapid temperature ramp-up and accuracy of ± 1°C
- Temperature uniformity across all slide positions
- Heats slide to temperatures ideal for FISH procedures
System Details
The ThermoBrite System holds up to 12 slides. The system maintains uniform temperature across all slide positions. The numeric keypad allows for easy programming with 40 user programmable settings and 3 modes of operation: Denaturation/ Hybridization, Hybridization, and Fixed Temperature.
Intended User
ThermoBrite is intended for use by qualified laboratory personnel or designee.
Intended Use
For in vitro diagnostic use in denaturation/hybridization of slide-based FISH procedures.
The ThermoBrite is a microprocessor controlled small bench top hot plate with lid. The ThermoBrite allows storage of 40 programs, three operating modes, Fixed Temperature, Hybridization Only or Denaturation and Hybridization, capacity for twelve slides and a maximum temperature of 99°C. The instrument is UL/cUL listed and CE marked.
| THERMOBRITE SYSTEM TECHNICAL SPECIFICATIONS | |
| Dimensions | Depth 45.1 cm/17.8 in Width 22.8 cm/9.0 in Height 13.5 cm/5.3 in Weight 8.5 kg/18.7 lb |
| Capacity | 12 slides |
| Processing Time | Programmable 0 to 100 hours Continuous mode |
| Power | 120 VAC at 3.0 A 240 VAC at 1.6 A |
| Temperature Range | Programmable 30°C-99°C |
| Environmental | Maximum relative humidity 80% for temperatures up to 15°C decreasing linearly to 50% relative humidity at 40°C |
