BioView

CE Marked

BioView provides innovative automated cell imaging and analysis solutions for use in cytology, cytogenetics, hematology, pathology, and oncology laboratories.

VIEW ORDERING INFORMATION

Viewing a Better Future For You

BioView application suite:

Amnio FISH (AneuVysion)
Bladder (UroVysion)
Breast (PathVysion)
Cervical
Circulating Tumor Cells (CTC)
Fluorescent Metaphase
Hematology
Karotyping
Lung (Vysis ALK)
Solid Tumors
Target FISH
Tissue Matching
Tissue Micro Array (TMA)
Urine Cytology

LABORATORY EFFICIENCY ACHIEVED WITH BIOVIEW
	Hematology	Tissue	UroVysion
Slide setup (minutes)	0	3	0
Unattended scan (minutes)	3-8	5	20
Review and analysis (minutes)	5-10	5-10	10
Report (minutes)	1	1	1
Operator time per sample (minutes)	6-11	9-14	11

Application Considerations

Operator control of the critical steps:
- Selection of cells within tumor regions (tissue)
- Review and approval of scan results (tissue/cell suspension)
Report generation containing all pertinent data
Standardization of analysis and results
Local and remote review/analysis for interpretation, consultation and training

See application details

	ENCORE	DUET-3	ALLEGRO-PLUS	ACCORD-PLUS	ACCORD*

Type of Scanning	Fully Automated				Semi-Automated
Fluorescent Microscope, Objectives & Filters	+
Oil Immersion Objectives For Automated Fluorescent Scanning	+
Slide Load Capacity Of Motorized Stage	Up to 100/200	Up to 50	Up to 8	Single	Single
Integrated Automated 2D Barcode Reader	+			Hand-held barcode reader (O)
Integrated Automated Oil Dispenser	O			-	-
Fluorescent Light Source	Standard light source (+) or Long-life Lamp (O)
Bright Field Light Source	O
Digital Camera	2048 x 2048 Monochrome or Color
UPS	+
Monitor	24" LCD (+) or 22" Touch screen LCD (O)
Works with SoloWeb	+

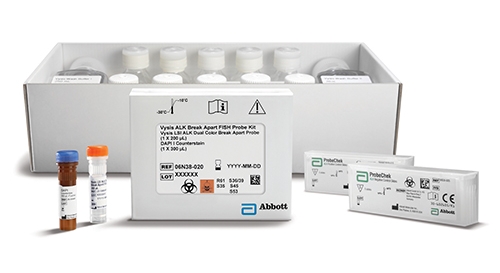

Supported Applications*	PathVysion, UroVysion, and some Hematology probes Parallel tissue matching TMA Vysis ALK Break Apart FISH Probe Kit			Rare cells detection Circulating tumor cells detection and characterizaton mRNA imaging and analysis

*Accord configuration supports solid tumor FISH applications only

Key:
+ Included as standard equipment
O Optional, available at additional cost
- Not applicable

Tissue FISH

Automated FISH analysis for all probes hybridized to FFPE tissue sections
Supports matching between parallel tissue sections (Brightfield and Fluorescence)

Hematology FISH

Automated FISH analysis for all probes hybridized to Bone Marrow and Peripheral blood samples
BioView's Hematology application is FDA cleared (510k) and CE-marked
Supports automatic evaluation of multiple regions hybridized with different probes on same slide (Panels)

UroVysion

Automated FISH analysis for urine specimens hybridized with UroVysion Kit
Automatic identification and exclusion of cell clumps and white blood cells

High Quality Imaging

BioView’s high quality imaging and optical components ensure superior imaging quality, reliability and ultimately more accurate results. They also provide professionals with clear, true, non-enhanced images on which they can perform a more precise analysis.

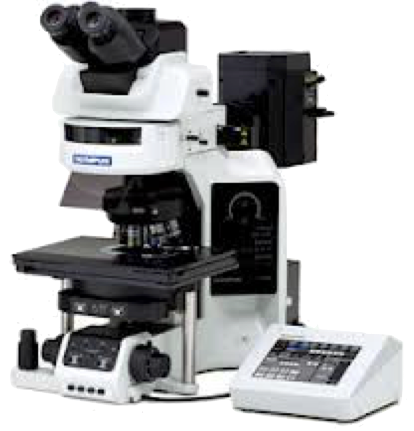

Fully equipped Fluorescent microscope, including filters and objectives
Oil immersion objectives for more accurate, finely detailed images
Software controlled filter and objective swap according to the specific probe scanned
Software controlled focus that automatically captures multiple focal layers
Sensitive, high resolution digital camera
